Product Condition : New - Open Box
Ideal for Europe,Asia Pacific market.

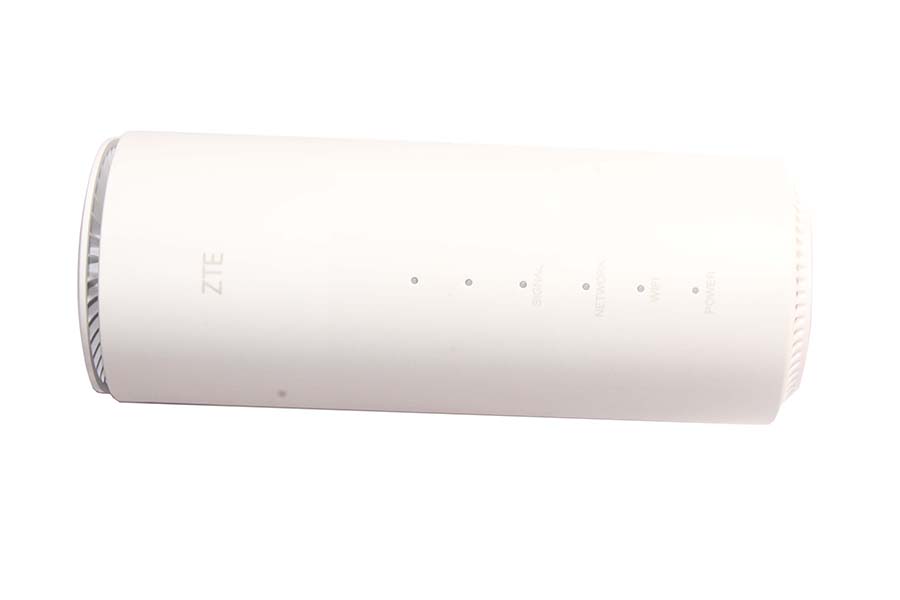

ZTE MC801A 5G WiFi CPE Specifications：
* Category: 5G Router
* Communication Standard: 3GPP Release 15
* Chipset: Qualcomm 5G SDX55M* CPU: Cortex A7 up to 1.4GHz
* Supported networks:
- Network technology: 5G NR, 3GPP Rel 15 5G NR SA & NSA option 3X
- Network frequencies: 5G: 41/77/78/79
- Support 4G LTE Band: 1/3/7/20/28/40 and 3G WCDMA Band: 1/8
* Data rate speeds:
- 5G: DL: 3.8 Gbit/s and UL: 542 Mbit/s
- LTE Category 22 (DL: 2.4 Gbit/s and UL: 316 Mbit/s), 5CA, MIMO 4x4 for B1/3/7
- WCDMA: DC (up to 42Mbit/s)
* Modulation: DL 256QAM, UL 64QAM
* Wi-Fi: 802.11a/b/g/n/ac/ax(WiFi 6), dual-band, 4 x 4 MIMO
* WiFi 5GHz: up to 80MHz, 2 x 2 MIMO, up to 1.2Gb/s
* WiFi 2.4GHz: up to 40MHz, 2 x 2 MIMO, up to 575Mb/s
* WLAN encryption standards: WPA, WPA2, WPS
* Support up to 30 WiFi users simultaneously
* Functions: Blocklist, 3 SSIDs (2 Primary, 1 Guest)

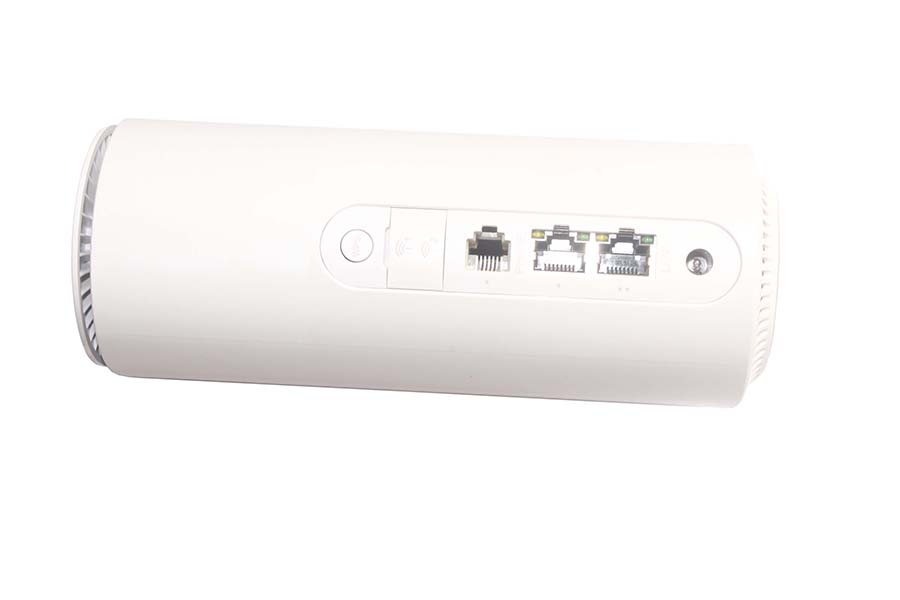

* Interface:- SIM card slot(NANO SIM) x 1- Tel port(RJ11) x 1 (CSFB)- WAN/LAN GE port
* 1- 1GE port(RJ45) * 1- DC port x 1
* Administration console: Full access from a web browser 192.168.0.1
* Power supply: 12V / 4A* Button: Power button, reset button
* Cellular Antenna Ports: 2 slots for external antenna with TS-9 connector
* SIM Card size type: NANO SIM* Support OS: Linux
* Other functions:
MAC address filtering,
Wi-Fi encryption authentication,
VPN, IPv6 support, VoLTE, DMZ, SSID,
Guest SSID, Port Forwarding, Watchdog Service,
DHCP settings, network selection, APN settings etc.
* Dimension: 225 x 154.5 x 87 mm
* Package content:
- ZTE 5G Router MC801A x 1
- 12V power adapter x 1
- Brief instruction
