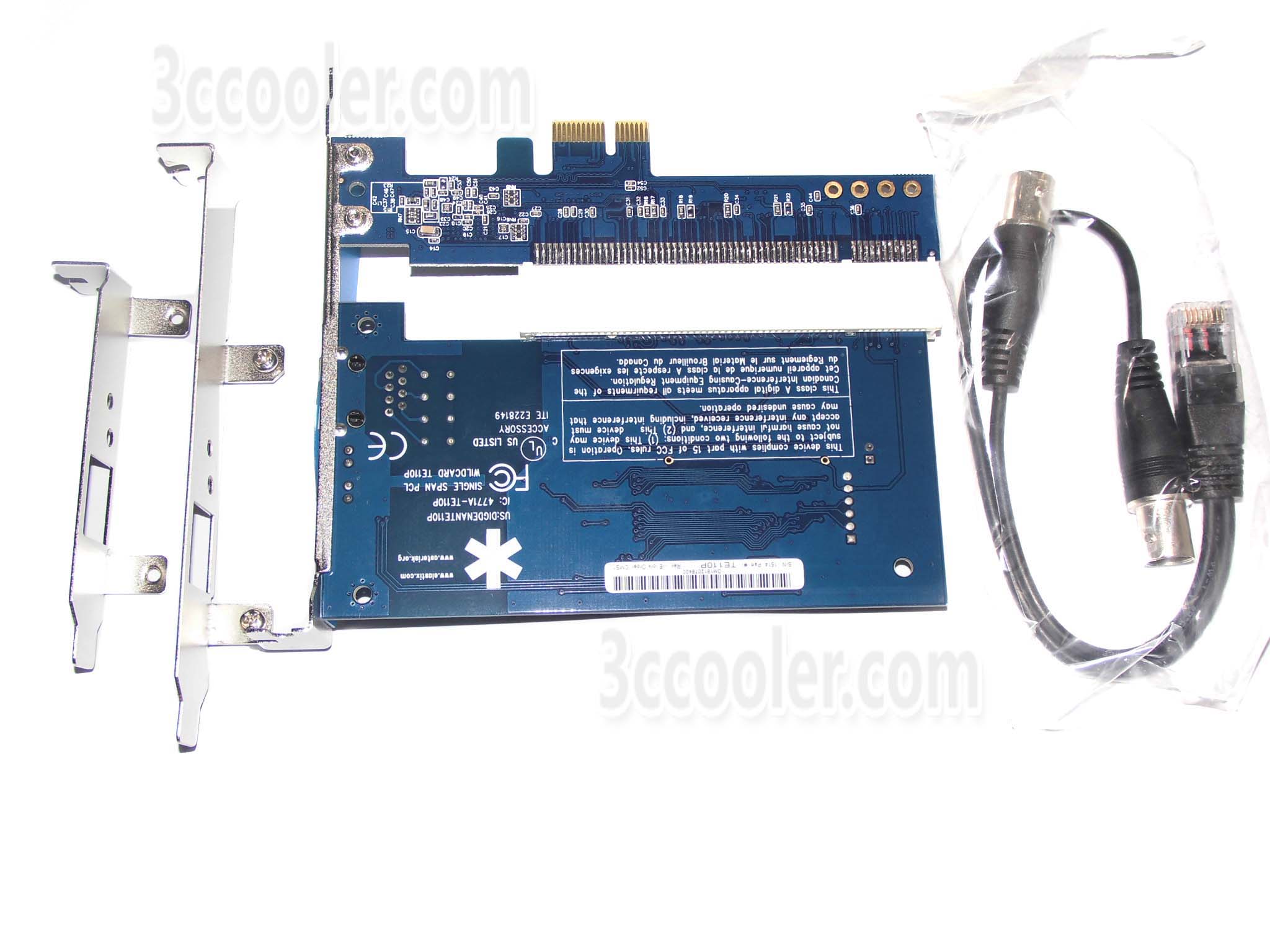

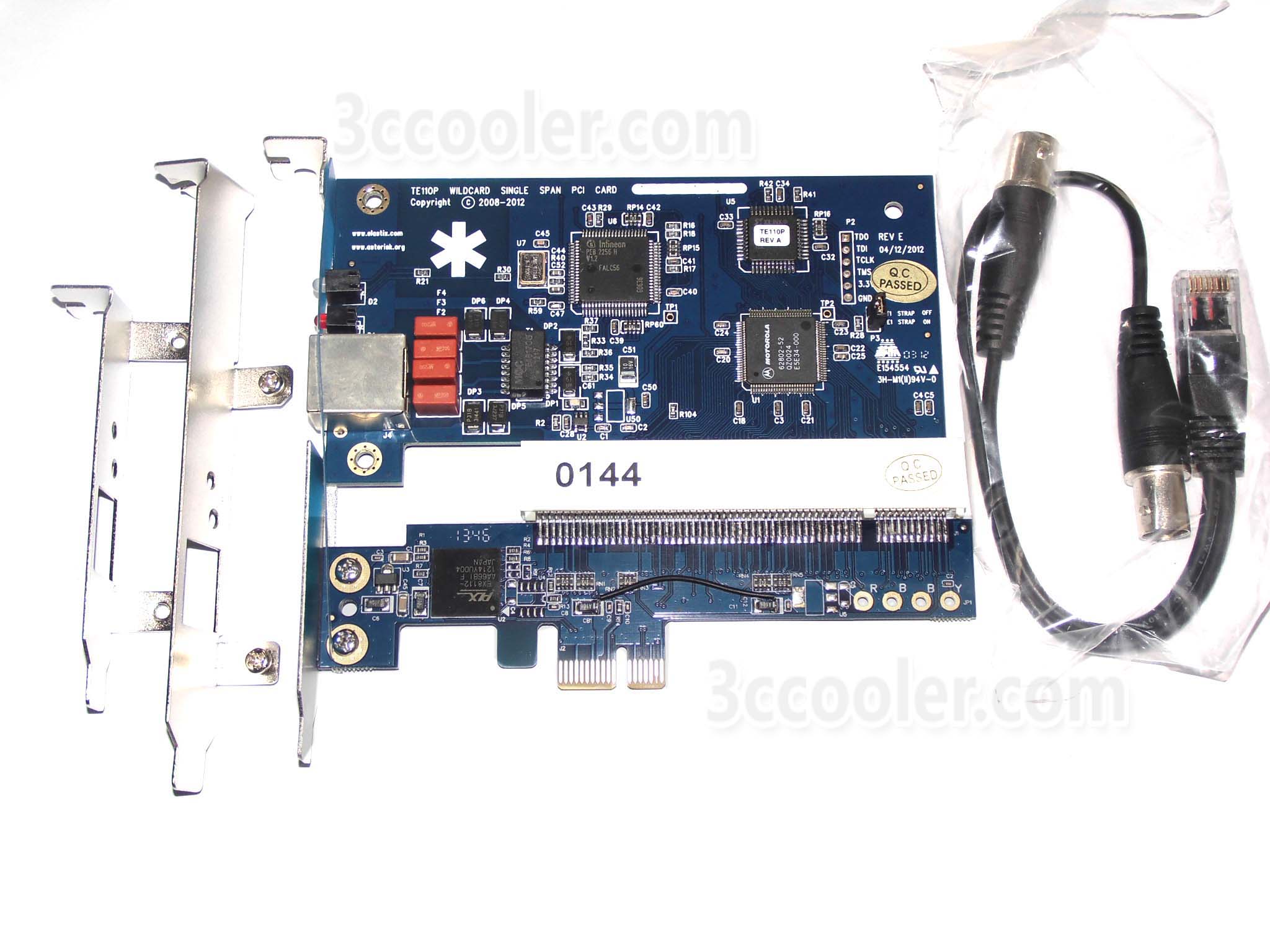

Wildcard Digital TE110P/TE110Pe T1/E1/J1 1 Port PCIe  Card with BNC Cable For PBX Voip
Next image
Zoom image

Wildcard Digital TE110P/TE110Pe T1/E1/J1 1 Port PCIe Card with BNC Cable For PBX Voip

VoIP Gateway
TE110Pe 1 Port
Supports E1/T1/J1 Mode
Bus Type PCIe / PCI Express
support SS7 voip ippbx trixbox elastix

In stock (36 items available)
  • $68.60
Market price: $89.00, you save $20.40
  • 23% less
  • Weight
    0.68 kg
  • SKU


It is a brand new card, well packed with ESD bag and a small carton box. Under Asterisk system, auto-config with no driver needed. It is the most stable and reliable product among all other similar products available in the market.

   The TE110Pe is a single span, selectable T1 (24-channel) or E1 (32-channel) card that supports all the functionality of the Digium quad T1/E1 card. This card supports both voice and data modes on its single span. For example, the card can support 12 channels dedicated to voice and 12 to data while passing all traffic through to the Asterisk PBX, which reliably routes the channels to their designated locations. This eliminates the need for an external router.

     By utilizing our TDMoE (TDM over Ethernet) technology, an exclusive Digium process, one can easily connect multiple PCs equipped with the TE110Pe and achieve voice quality on par with single PBX implementations. Scalability for this product is derived from adding multiple TE110Ps to each individual PC. Add addition cards as you need them for your expanding applications.

      The TE110Pe supports industry standard telephony and data protocols, including both RBS and Primary Rate ISDN (PRI) protocol families for voice and PPP, HDLC, and Frame Relay data modes. The board drives both line-side and trunk-side interfaces, including call features.

      The Wildcard TE110Pe brings a high-performance, cost-effective, and flexible single span togglable T1/PRI or E1/PRI interface to the Digium line-up of telephony interface devices. The TE110Pe is a compact and powerful interface supporting voice and data transmission over T1, E1, and Primary Rate ISDN (PRI) connections. A low profile, half-length PCI form factor allows this device to fit within a 2U rackmount case or equivalent chassis, offer excellent density for call center, service provider, and other space-sensitive applications. Of course, the TE110Pe is fully supported by Digium???s open source Asterisk PBX software. Used in conjunction with Asterisk, the TE110Pe offers the power to create a seamless network, interconnecting traditional telephony systems with the emerging Voice-over IP technologies. The TE110Pe can be used to deliver a wide range of PBX and IVR services to the network or handset including Voicemail, Call Conferencing, Three-Way Calling, and VoIP Gateways.




Model Qty Unit Price Shipping Ways
 TE110Pe > 30 pcs


More and more new products will be display online. Any help, please send an email to us. We will reply you within 24 hours.

  • Type
    Digital Asterisk Card
  • Model Number
    TE110Pe TE110
  • Port number
  • Bus type
    PCIe / PCI Express
  • Digital Signaling Type
    T1 E1 J1
  • Support Echo Cancellation Module
  • With Echo Cancellation Module On
  • Manufacturer
  • Unit Type
    1 Piece
  • Warranty
    1 Year
