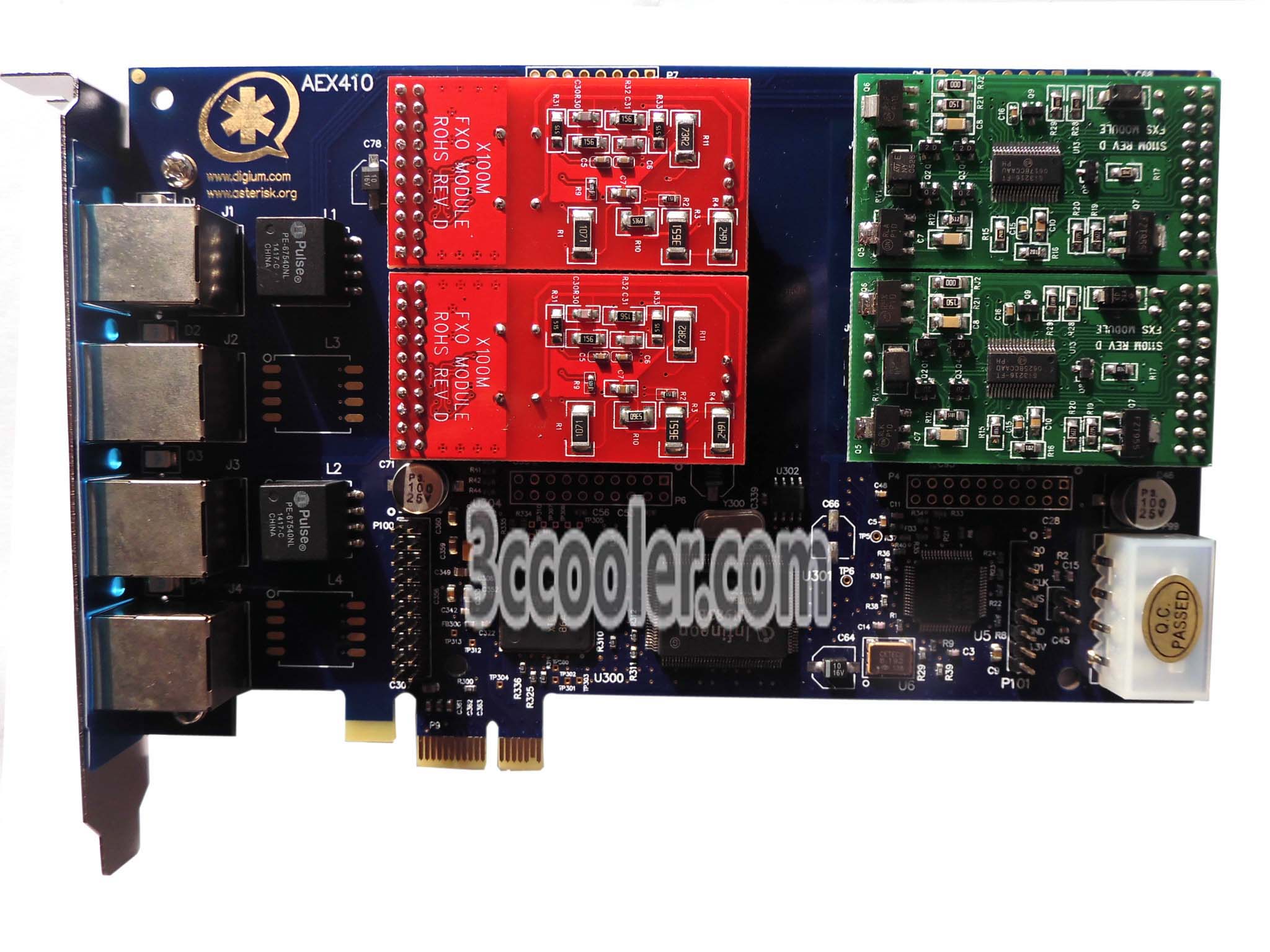

AEX410 Base Analog Telephony Card.It is a half-length PCI Express 1.0 compliant modular gateway card for connecting analog telephone stations and analog POTS lines through a PC. It supports a combination of up to four station or trunk modules for a total of 4 lines.
The AEX410 series card supports from one to four telephone interfaces for connecting analog lines to a PC. It is possible to create SOHO (Small Office Home Office) telephony environment with all of the sophisticated features of a more expensive phone system by using Asterisk PBX software an standard PC hardware.
Scale this solution by adding additional Digium cards and/or FXS or FXO modules. It also provides the capability of connecting to hardware-based echo cancellation module VPMADT032, providing 128ms (1024 taps) of AT and T certified Toll Quality G.168 compliant echo cancellation.
AEX410P Features and Functions
Up to 4 Ports for connecting analog phones or POTS lines
Half-length analog card PCI Express v1.0+
Up to 4 FXS or FXO modules
Single module = 1 RJ11 Port RJ-11C Connector
Hardware-based echo cancellation module VPMADT032 optional
